U Type Auger Screw Conveyor High Temperature Horizontal For Cement

Brand Name : PK

Model Number : LS

Certification : CE Certificate,ISO9001:2008, BV, SGS,Business-license,Certificate of environment management system certification

Place of Origin : Xinxiang City, Henan Province,China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 2000SETS/YEAR

Delivery Time : ABOUT 30 DAYS

Packaging Details : Standard export package

Power(W) : 0.4kW - 22kW

Screw pitch : 160/200/250/315/400/500/560mm

Rotating speed : 16/20/25/32/40/50/63/71rpm

Dimension(L*W*H) : Customized Size

Usage : Chemical Industry

Reducer : YZQ250/350/400/500/650/750/850

Contact Now

U Type Auger Screw Conveyor High Temperature Horizontal For Cement

Introduction

Trough screw conveyor is a continuous conveying equipment for conveying powder, granular and dry bulk materials. It is composed of bearing seat, spiral blade, spiral shaft, suspension bearing, conveyor housing and transmission device. It can be combined with single screw or multi screw combination equipment to meet the special requirements on site. It has a slotted tube, multiple inlets and outlets, and a maximum angle of 20 °. The rotation of the blade is started by the motor, and then the material is transported to the outlet along the spiral line.

Features:
1. The motor reducer could be installed on the top or the bottom.
2. Conveyor has big transport capacity, long distance available.
3. Stable and controllable start, continuous and highly efficient operation.
4. The conveying could be the level or the inclined.
5. The blade could be entity spiral or belt spiral.

Technical Parameter:

LS screw conveyor specification & technical parameters
Type		LS160	LS200	LS250	LS315	LS400	LS500	LS630	LS800	LS1000	LS1250
Diameter/mm		160	200	250	315	400	500	630	800	1000	1250
Screw pitch/mm		160	200	250	315	355	400	450	500	560	630
technical parameters	n	112	100	90	80	71	63	50	40	32	25
	Q	8	14	24	34	64	100	145	208	300	388
	n	90	80	71	63	56	50	40	32	25	20
	Q	7	12	20	26	52	80	116	165	230	320
	n	71	63	56	50	45	40	32	25	20	16
	Q	6	10	16	21	41	64	94	130	180	260
	n	50	50	45	40	36	32	25	20	16	13
	Q	4	7	13	16	34	52	80	110	150	200
n---Rotation Speed (r/min), Allowable Deviation < 10% Q---Capacity (m3/h), Filling Factor = 0.33

U Type Auger Screw Conveyor High Temperature Horizontal For Cement

Selection Conditions

♦ Material to be processed:

♦ Installation angle:

___° (if the installation is inclined)

♦ Bulk density:

t/m³

♦ lifting height:

___m (if there is slope angle)

♦ Water content:

♦ Upstream equipment (what kind of equipment is used to feed the material):

♦ Material temperature:

°C

♦ Downstream equipment (what kind of equipment is used to discharge the material):

♦ Material is corrosive or not:

(Yes or No)

♦ Motor and gearbox: (Domestic or International brand or designated brand?)

♦ Material is sticky or not:

(Yes or No)

♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

♦ Granule size of material:

♦ Working environment:

(indoor or outdoor)

♦ Max. Granule size:

♦ Working environment temperature:

°C

♦ Handling capacity:

t/h

♦ Working power supply:

3 Phase V Hz

♦ Conveying length (distance between inlet and outlet): m

♦ Quantity:

sets

♦ Installation of the conveyor is inclined or not: ___ (Yes or No)

Product Tags:

small auger conveyor

auger screw feeder

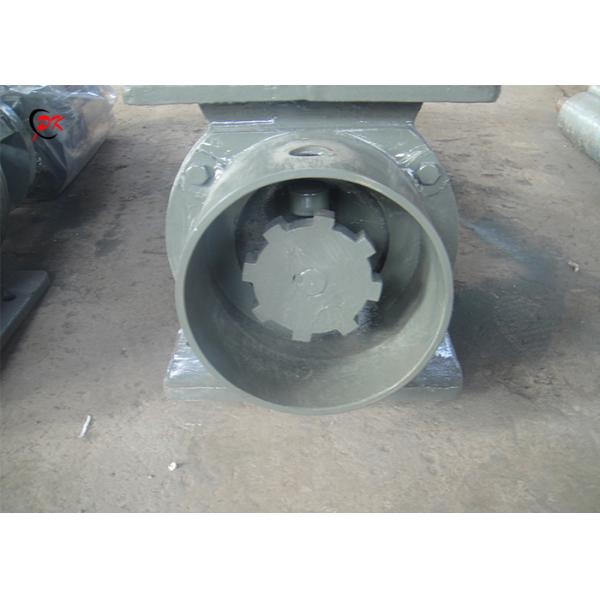

U Type Auger Screw Conveyor High Temperature Horizontal For Cement Images
